01 · SOLUTIONS / OPERATING CONTEXTS
The load is only
the start.
Material handling becomes a production issue when a load crosses a process boundary: receiving into storage, storage into a machine, a hall into a yard, or packing into dispatch. Start with the route. Define the lifting and transfer roles around it.
- 01
- 02
- 03
- 04
Start with the operation.
Then define the handling roles.
The product name is not the starting point. The material, hand-offs, operating pressures and system boundary determine which equipment and engineering support belong in the discussion.
- 01
The real material.
Define the load form, condition, attachment and any change between receiving and dispatch.
- 02
Every hand-off.
Mark where the load waits, changes equipment, crosses traffic or enters another process zone.
- 03
The operating pressure.
Heat, cold, dust, wind, hygiene, timing, access and redundancy can change the handling concept.
- 04
The system role.
Separate equipment, structure, controls, interfaces, recovery and acceptance before defining supply scope.
Where does the flow
break down?
Each industry has its own material, timing, access and hand-off conditions. Select one to inspect the process moments that define the handling discussion.
Steel Mills & Metal ProcessingReceiving, processing, inter-bay transfer and dispatch all change how coils, plate and long products should move.
Automotive & Assembly ManufacturingTool readiness, line-side presentation, inter-zone hand-offs and maintenance access decide whether flow keeps pace.
Shipyards & Marine FabricationPlate fabrication, block assembly, hall-to-yard transfer and outfitting each create a different movement boundary.
Ports & Marine TerminalsVessel interface, quay transfer, yard storage and landside hand-off define whether each cargo stream can move safely and predictably.
Machinery Manufacturing & Service WorkshopsReceiving, machine service, precision assembly and repair routes make access and positioning as important as lift.
Food & Beverage ProcessingMaterial condition, cleaning access, short maintenance windows and packed-product flow shape the work.
Cold-Chain Storage & DistributionTemperature-controlled receiving, zone transfer, storage and dispatch must preserve product condition without exposing people or flow to avoidable delay.
Warehousing, Distribution & IntralogisticsInbound verification, replenishment, consolidation and dock hand-off determine whether inventory moves predictably.PROTECT EVERY TEMPERATURE HAND-OFF.
Cold-chain flow is a sequence of timed door, vehicle, storage and dispatch interfaces. The handling plan must protect product condition while limiting dwell, condensation and manual exposure.
VERIFY CONDITION BEFORE THE LOAD ENTERS THE COLD ROUTE.
Refrigerated loads need a sealed dock or controlled airlock where load identity, packaging condition, temperature status and destination can be confirmed without turning the dock into long-term storage. The route begins with trailer interface, dock level, door timing and a clear exception position.
Discuss controlled receiving- Palletised food / pharmaceutical / temperature-controlled units
- Refrigerated vehicle → dock or airlock → staging
- Temperature status, dwell & dock interface
- Product and packaging format
- Required temperature range
- Trailer and dock interface
- Verification and exception rule
- Door-open allowance
- Peak arrival pattern
Dock-to-staging transfer, pallet AGV or guided vehicle interface and controls that connect load verification with the assigned temperature zone.

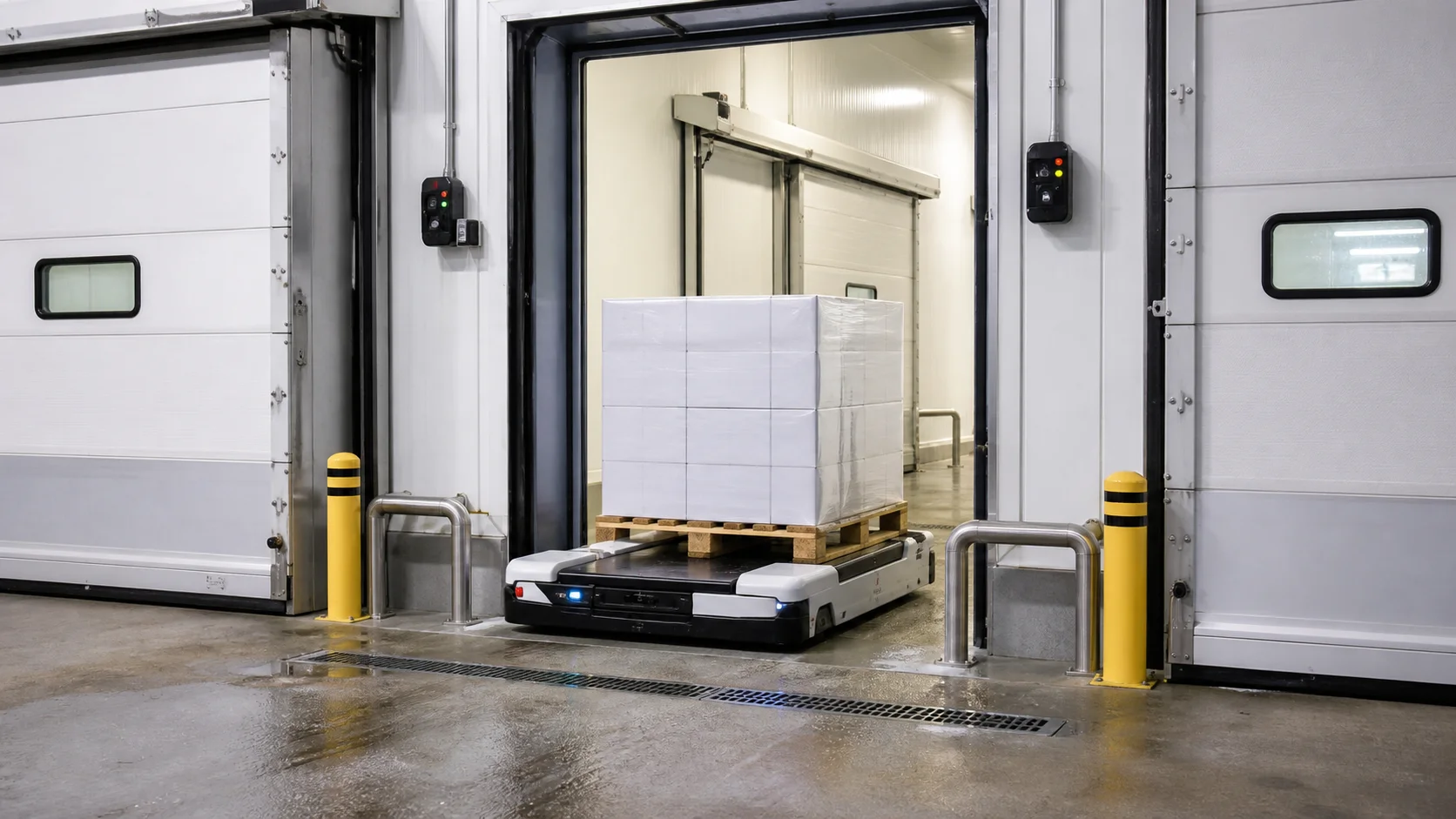

TREAT EACH DOOR AS A PROCESS INTERFACE.
Moving between ambient, chilled and frozen zones changes traction, condensation risk, door cycle and equipment duty. Vehicle dimensions, turning path, seals, drainage, sensing and traffic priority must be coordinated so that one open door or blocked crossing does not disrupt the temperature boundary.
Discuss zone transfer- Pallets / totes / insulated containers
- Staging → airlock or door → assigned zone
- Door cycle, condensation, traction & traffic
- Zone temperatures
- Door and airlock sequence
- Floor and drainage condition
- Vehicle turning envelope
- Condensation exposure
- People and vehicle priority
Cold-rated AGV/RGV or transfer route, door and traffic interfaces, and controls for permission, position and exception handling.

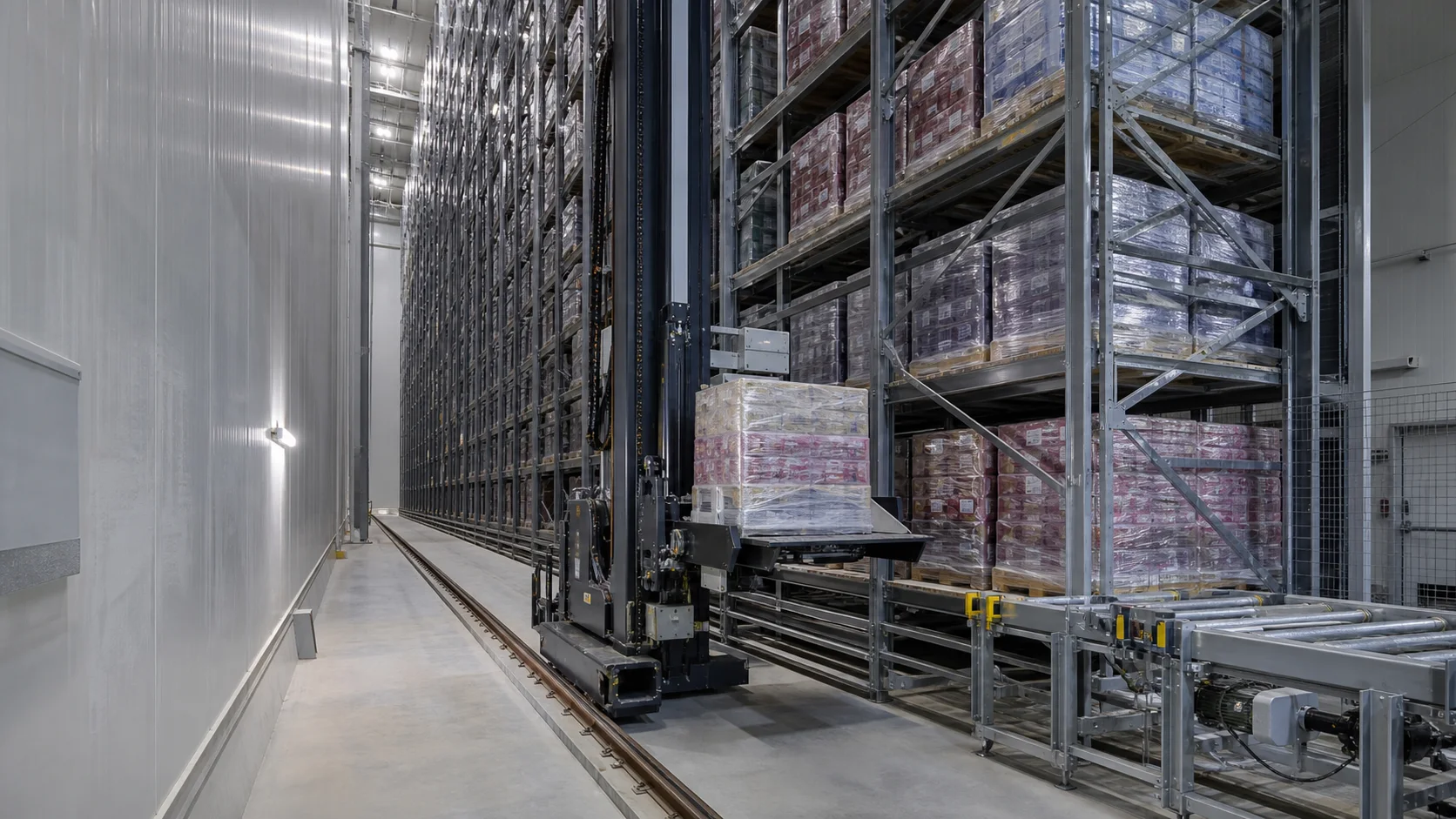

SIZE THE STORAGE INTERFACE AROUND RETRIEVAL, NOT ONLY CAPACITY.
High-density cold storage reduces the building envelope but makes availability, pallet quality and recovery more important. The interface must define load profile, rack and conveyor geometry, retrieval priority, blocked-location behaviour and how technicians can isolate and service equipment without entering an active automated aisle.
Discuss store & replenish- Pallets / totes / frozen or chilled stock
- Input station → storage → replenishment output
- Load quality, availability & recovery access
- Load profile and pallet quality
- Storage and retrieval rate
- Rack and conveyor interface
- Priority and buffer rule
- Equipment temperature rating
- Isolation and recovery access
Interface integration around AS/RS, conveyors and pallet transfer; cold-rated local lifting for maintenance where the service route requires it.

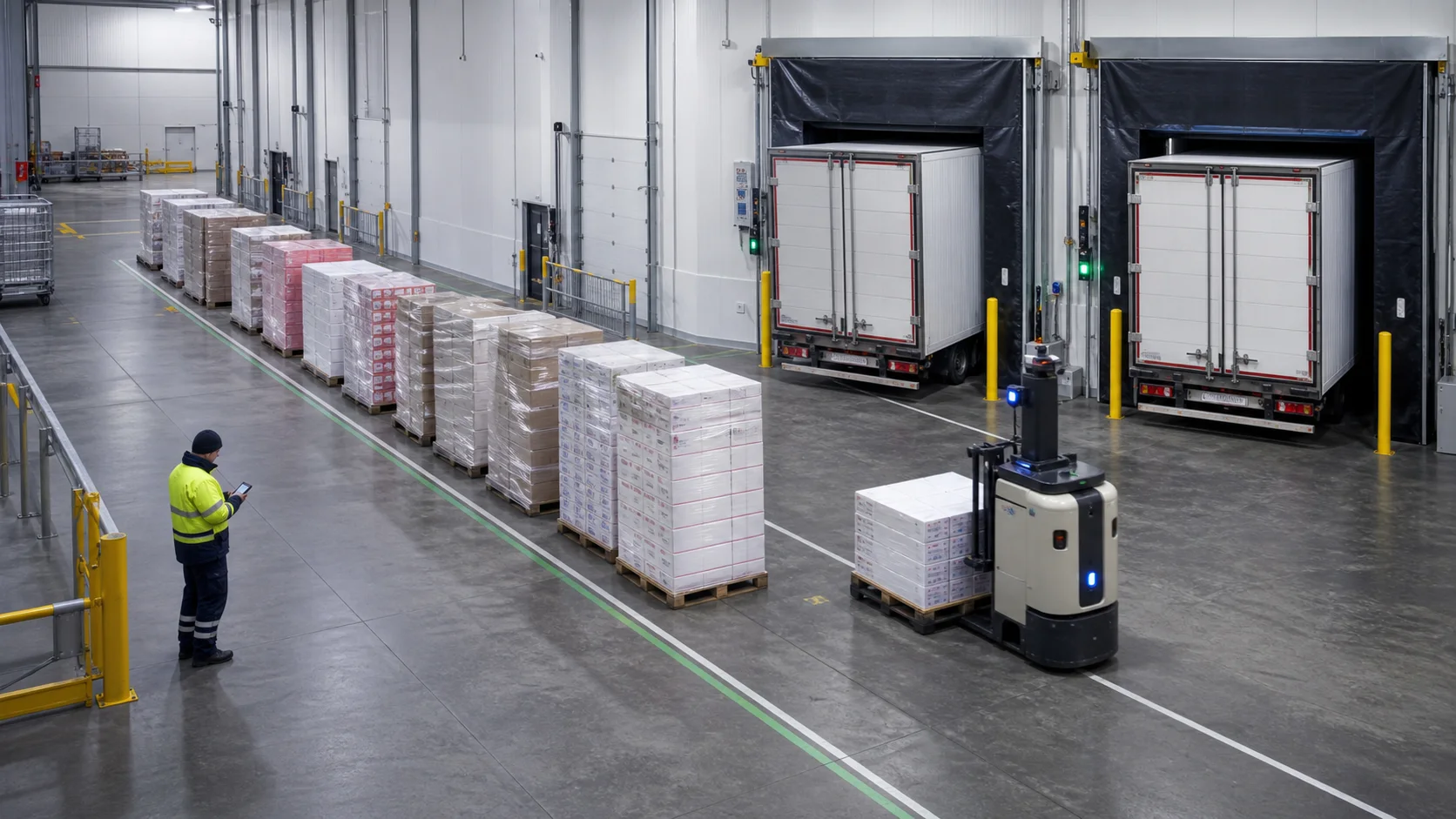

MATCH THE LOAD SEQUENCE TO TRAILER READINESS.
Orders need to be consolidated, checked and staged without losing their assigned temperature condition or blocking dock circulation. The dispatch concept connects retrieval timing, buffer capacity, route separation, trailer readiness, loading order and the exception path for a late vehicle or rejected load.
Discuss consolidate & dispatch- Orders / pallets / insulated units
- Storage output → consolidation → refrigerated vehicle
- Buffer dwell, trailer readiness & loading sequence
- Order and pallet profile
- Required dispatch rate
- Temperature-zone allocation
- Consolidation buffer
- Trailer readiness signal
- Loading and exception sequence
Pallet transfer or AGV route, cold dispatch buffer and controls linking storage release, dock position and vehicle readiness.
WHY COLD CHAIN NEEDS ITS OWN HANDLING LOGIC.
Cold-chain storage and distribution connect refrigerated vehicles, controlled receiving, chilled or frozen zones, automated or conventional storage, order consolidation and temperature-controlled dispatch. Product condition can be affected at every door, dwell point and exception queue rather than only inside the storage chamber.
The handling concept therefore coordinates temperature range, packaging, doors and airlocks, floor and drainage condition, equipment rating, worker exposure, automation availability, refrigeration-system access and recovery. The goal is a complete route that remains operable when a vehicle, door or storage device is delayed.
- 01
TEMPERATURE AND CONDENSATION
Warm-side moisture, cold surfaces, door dwell and floor condition change sensing, traction, packaging and equipment duty.
- 02
PEOPLE AND TRAFFIC EXPOSURE
Manual work in cold areas and mixed vehicle routes increase the value of clear segregation, short tasks and automated transfer.
- 03
SYSTEM AVAILABILITY
Dense automated storage and short dispatch windows require defined buffers, isolation and practical recovery access.
Four moments.
One material flow.
Use the route below as a first technical map. Each moment changes what needs to be measured, protected, timed or handed over.
VERIFY CONDITION BEFORE THE LOAD ENTERS THE COLD ROUTE.
Refrigerated loads need a sealed dock or controlled airlock where load identity, packaging condition, temperature status and destination can be confirmed without turning the dock into long-term storage. The route begins with trailer interface, dock level, door timing and a clear exception position.
TREAT EACH DOOR AS A PROCESS INTERFACE.
Moving between ambient, chilled and frozen zones changes traction, condensation risk, door cycle and equipment duty. Vehicle dimensions, turning path, seals, drainage, sensing and traffic priority must be coordinated so that one open door or blocked crossing does not disrupt the temperature boundary.
SIZE THE STORAGE INTERFACE AROUND RETRIEVAL, NOT ONLY CAPACITY.
High-density cold storage reduces the building envelope but makes availability, pallet quality and recovery more important. The interface must define load profile, rack and conveyor geometry, retrieval priority, blocked-location behaviour and how technicians can isolate and service equipment without entering an active automated aisle.
MATCH THE LOAD SEQUENCE TO TRAILER READINESS.
Orders need to be consolidated, checked and staged without losing their assigned temperature condition or blocking dock circulation. The dispatch concept connects retrieval timing, buffer capacity, route separation, trailer readiness, loading order and the exception path for a late vehicle or rejected load.
What changes
the concept?
- A
LOAD AND TEMPERATURE ENVELOPE
Define the product, packaging, pallet or tote condition and the temperature range each handling device must tolerate.
- B
DOOR AND DWELL LOGIC
Connect door sequence, airlock capacity, travel time, verification and exception waiting to the allowed exposure window.
- C
AUTOMATION INTERFACES
Verify floor, guidance, charging, pallet quality, rack or conveyor geometry, controls and traffic permissions.
- D
RECOVERY AND SERVICE ACCESS
Plan isolation, manual recovery, warm-side maintenance, refrigeration-equipment access and restart after an interruption.
Choose the equipment.
Then add the operating constraint.
Explosion protection, cleanliness, electrical insulation, availability, heat and automation can change components, controls, verification and acceptance across more than one product family. Treat these as project requirements, not as separate equipment categories.
Explosion-Protected Lifting
Classified gas or dust zone, group and temperature classChanges permitted motors, brakes, enclosures, wiring, controls, documentation and acceptance evidence.Define this requirement02Clean & Controlled Environment Handling
Cleanliness class, particle limits, material and lubrication restrictionsChanges exposed surfaces, materials, lubrication, enclosure, cleaning access and contamination controls.Define this requirement03Electrically Insulated Lifting
Voltage context, required insulation points and contact riskChanges the insulation architecture, monitoring, component separation and configuration-specific verification.Define this requirement04High-Availability & Redundant Lifting
Failure consequence, required recovery time and maintenance accessChanges drive and brake architecture, fallback states, maintainability and proof of continued availability.Define this requirement05High-Temperature & Molten-Material Handling
Molten or high-temperature load, radiant heat and personnel exposureChanges shielding, cabling, control position, emergency strategy and protection of critical components.Define this requirement06Automation, Remote & Unmanned Operation
Remote or unmanned cycles, system hand-offs and fault recoveryChanges sensing, interlocks, permissions, recovery logic, interfaces and responsibility boundaries.Define this requirementBring the route,
not a perfect spec.
A layout, route sketch, load list, photos or process sequence is enough to begin. The first discussion identifies the operating boundaries, missing inputs and handling roles worth evaluating.
MAP YOUR HANDLING ROUTE- Form, dimensions, condition, attachment and stability
- Origins, destinations, waiting points, doors and crossings
- Sequence, buffer, cycle, peak flow and recovery
- Structure, floor, access, temperature, dust, hygiene or wind
- Signals, traffic, responsibility, verification and delivery boundary
