Material handling becomes a production issue when a load crosses a process boundary: receiving into storage, storage into a machine, a hall into a yard, or packing into dispatch. Start with the route. Define the lifting and transfer roles around it.

Steel coils staged beneath an overhead crane and coil-lifting attachment
Steel Mills & Metal Processing
Mobile harbour crane lifting a secured project cargo module from a vessel to a controlled quay landing zone
Ports & Marine Terminals
Automated pallet vehicle transferring sealed food cartons through a controlled cold-storage receiving airlock
Cold-Chain Storage & Distribution
Autonomous material-flow vehicles moving among storage and production stations
Warehousing, Distribution & Intralogistics
  1. 01
    Material & load state
  2. 02
    Process route & hand-off
  3. 03
    Access & environment
  4. 04
    Duty & recovery

02 · How to begin

Start with the operation.
Then define the handling roles.

The product name is not the starting point. The material, hand-offs, operating pressures and system boundary determine which equipment and engineering support belong in the discussion.

  1. 01Start with

    The real material.

    Define the load form, condition, attachment and any change between receiving and dispatch.

  2. 02Then map

    Every hand-off.

    Mark where the load waits, changes equipment, crosses traffic or enters another process zone.

  3. 03Then expose

    The operating pressure.

    Heat, cold, dust, wind, hygiene, timing, access and redundancy can change the handling concept.

  4. 04Then bound

    The system role.

    Separate equipment, structure, controls, interfaces, recovery and acceptance before defining supply scope.

02 · INDUSTRY ATLAS

Where does the flow
break down?

Each industry has its own material, timing, access and hand-off conditions. Select one to inspect the process moments that define the handling discussion.

03 · PORTS & MARINE TERMINALS

MAP THE CARGO FROM VESSEL TO GATE.

Container, bulk, general and project cargo use different attachments and routes. The useful starting point is the complete hand-off from vessel position to the next transport mode.

Mobile harbour crane lifting a secured project cargo module from a vessel to a controlled quay landing zone
VESSEL → QUAY TRANSFER → YARD → LANDSIDE HAND-OFFCargo type changes the attachment, landing zone and route, but every movement still needs one controlled hand-off.

01 · Vessel interface

DEFINE THE CARGO, WORKING RADIUS AND LANDING ZONE TOGETHER.

The vessel position, hatch or deck geometry, cargo mass and centre of gravity, attachment method and crane working radius determine the first movement. A credible brief also defines weather limits, the exclusion zone and where the load can be safely landed before terminal traffic resumes.

Discuss vessel interface
material
Container / breakbulk / project cargo / bulk
movement
Vessel → lifting appliance → quay landing
constraint
Outreach, attachment, weather & exclusion zone

Useful first inputs

  • Cargo unit and verified mass
  • Pick points or lifting attachment
  • Vessel and stow geometry
  • Working radius and outreach
  • Wind and visibility criteria
  • Quay landing and exclusion zone

Possible system role

Berth-crane or portal-crane concept and attachment/interface definition, with the supply boundary confirmed against cargo, outreach and terminal infrastructure.

The operating context

WHY PORTS NEED THEIR OWN HANDLING LOGIC.

A marine terminal is a chain of interfaces: vessel and lifting appliance, quay and terminal vehicle, yard and retrieval system, then gate, rail or another vessel. Containers, dry bulk, breakbulk and project cargo can share infrastructure while requiring different attachments, support rules, exclusion zones and operating rhythms.

The concept therefore starts with cargo and route, not a generic crane label. Berth geometry, water-side outreach, quay and rail loads, weather, traffic, stacking, inspection, maintenance access and recovery behaviour must be coordinated before an equipment or integration boundary is fixed.

  1. 01Pressure

    CARGO AND ATTACHMENT DIVERSITY

    Spreader, grab, magnet, hook, lifting beam and project rigging create different load paths and landing rules.

  2. 02Pressure

    WEATHER AND INFRASTRUCTURE

    Wind, visibility, outreach, rail geometry, quay loading and salt exposure shape availability and equipment configuration.

  3. 03Pressure

    TRAFFIC AND RECOVERY

    Vehicles, people, service teams and cargo streams need clear priority, safe waiting positions and a recovery route.

The complete route

Four moments.
One material flow.

Use the route below as a first technical map. Each moment changes what needs to be measured, protected, timed or handed over.

Mobile harbour crane lifting a secured project cargo module from a vessel to a controlled quay landing zone

01 · VESSEL INTERFACE

DEFINE THE CARGO, WORKING RADIUS AND LANDING ZONE TOGETHER.

The vessel position, hatch or deck geometry, cargo mass and centre of gravity, attachment method and crane working radius determine the first movement. A credible brief also defines weather limits, the exclusion zone and where the load can be safely landed before terminal traffic resumes.

  • Container / breakbulk / project cargo / bulk
  • Outreach, attachment, weather & exclusion zone

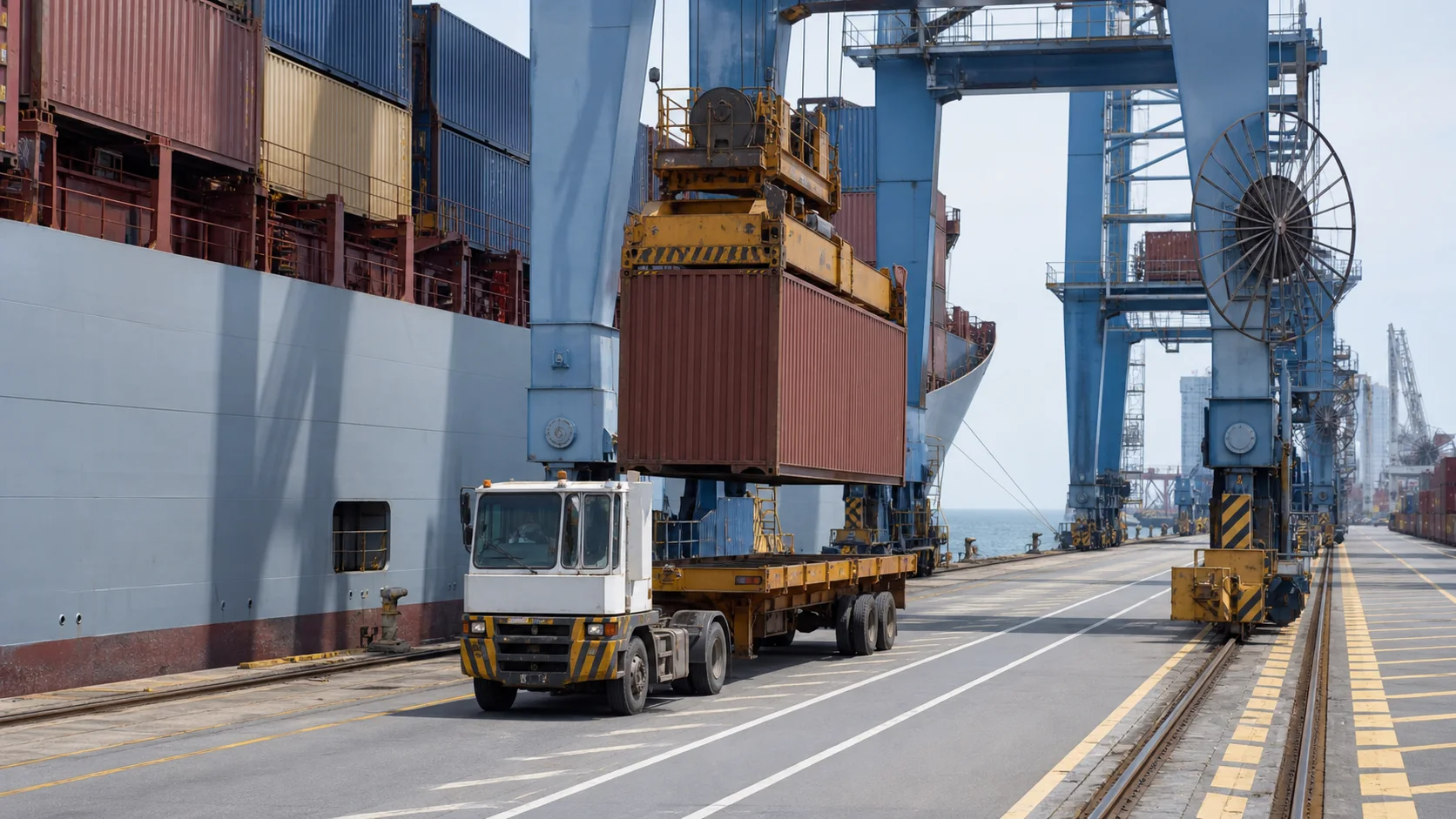

Ship-to-shore crane handing a container to an aligned terminal tractor in a separated quay-transfer lane

02 · CLEAR THE QUAY

MAKE THE HAND-OFF FAST WITHOUT MAKING THE QUAY AMBIGUOUS.

Once cargo reaches the quay, the berth must clear at the rhythm agreed with the vessel operation. Terminal tractors, AGVs, transfer platforms and people need separate waiting positions, positive hand-off confirmation and an exception route when the next vehicle or destination is unavailable.

  • Container / general cargo unit
  • Cycle, traffic separation & hand-off confirmation

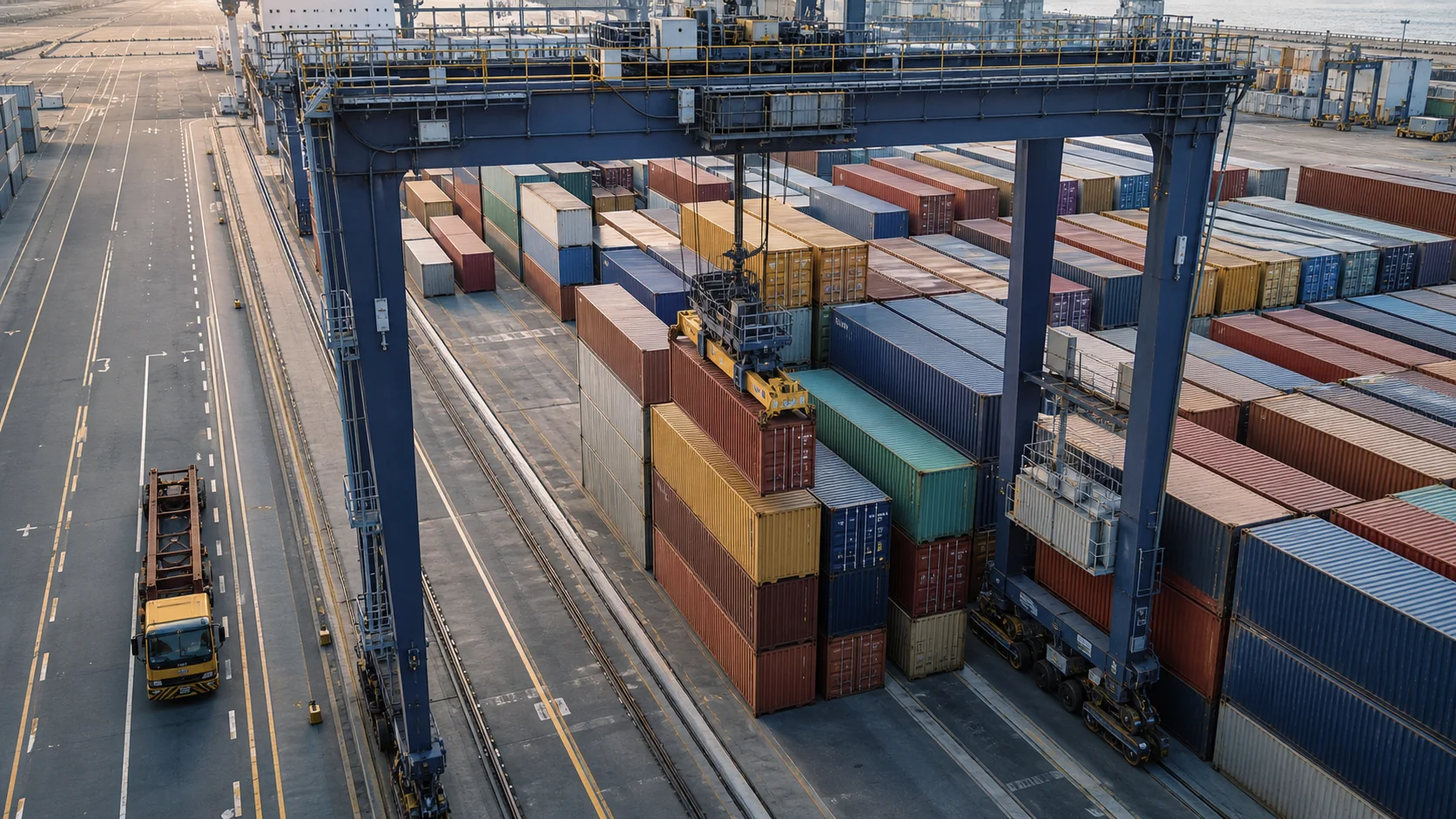

Rail-mounted gantry crane retrieving a container from an organised terminal stack beside a separated vehicle lane

03 · YARD & STORAGE

STORE FOR THE NEXT MOVE, NOT ONLY FOR MAXIMUM DENSITY.

Containers, breakbulk packages, steel products, bulk material and project loads need different support and retrieval logic. The yard concept must connect ground or rail condition, stacking or support rules, attachment access, re-handle limits and the route used by service and emergency teams.

  • Containers / breakbulk / steel / project loads
  • Ground, stacking, re-handles & equipment access

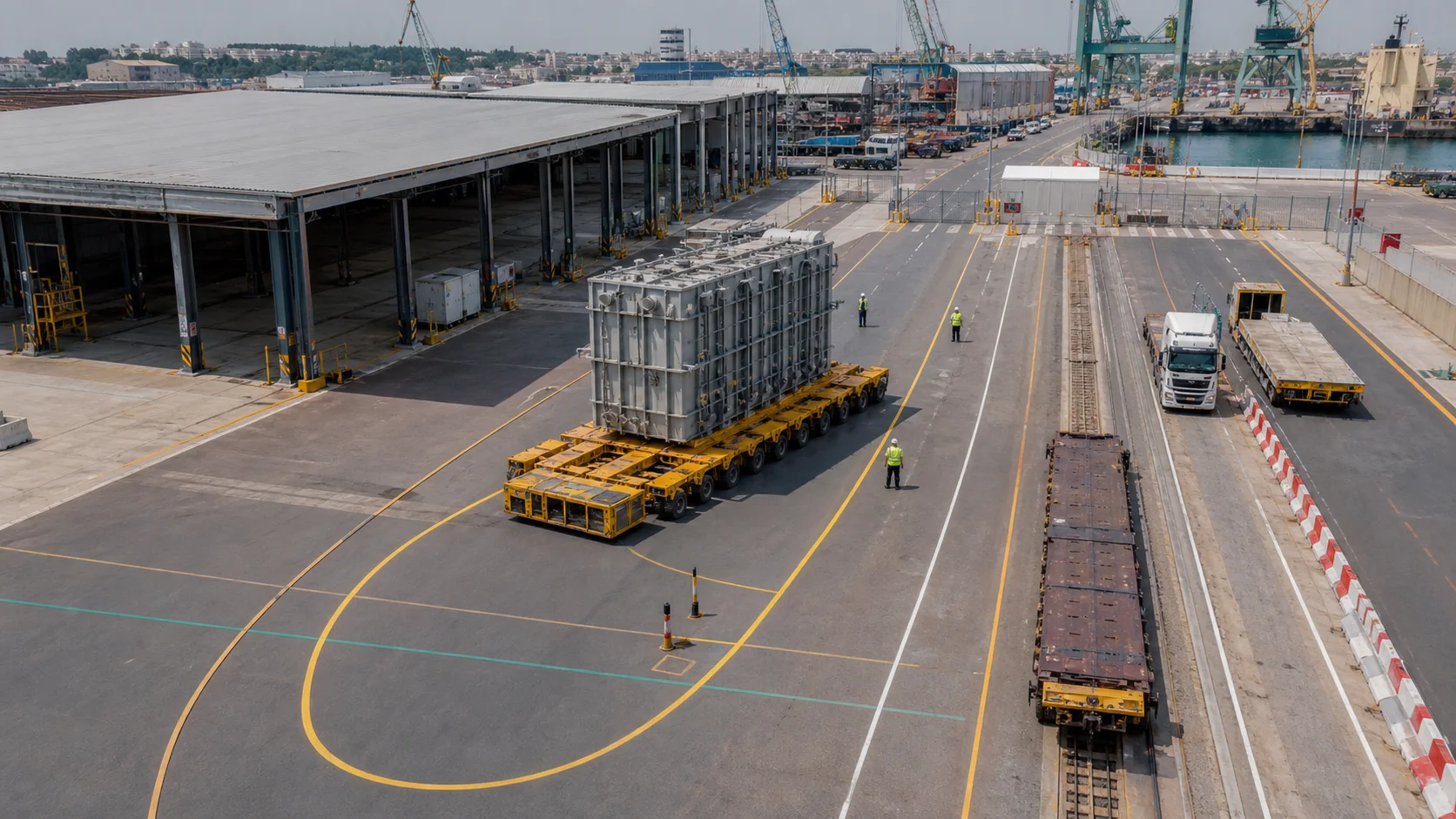

Oversized project cargo moving on a multi-axle transporter through a marked terminal route toward rail and truck hand-off zones

04 · LANDSIDE HAND-OFF

MATCH THE DEPARTURE ROUTE TO THE RECEIVING VEHICLE.

Cargo may leave through a truck gate, rail siding, barge interface or a direct project-cargo route. Vehicle deck height, axle loading, turning clearance, securing access, departure sequence and gate controls decide whether the final hand-off is ready when the cargo reaches it.

  • Outbound units / project cargo / containers
  • Vehicle interface, route clearance & sequence

Decision framework

What changes
the concept?

  1. AInput

    CARGO AND ATTACHMENT

    Define verified mass, centre of gravity, pick points, lifting device and how cargo condition is confirmed before each hand-off.

  2. BInput

    BERTH AND INFRASTRUCTURE

    Verify vessel envelope, working radius, quay or rail loads, utilities, weather criteria and the terminal operating boundary.

  3. CInput

    YARD AND TRAFFIC LOGIC

    Map lanes, crossings, waiting positions, stack or support rules, retrieval sequence and vehicle priorities.

  4. DInput

    AVAILABILITY AND RECOVERY

    Plan inspection, maintenance access, safe parking, exception handling and the route used when primary equipment is unavailable.

04 · Special operating requirements

Choose the equipment.
Then add the operating constraint.

Explosion protection, cleanliness, electrical insulation, availability, heat and automation can change components, controls, verification and acceptance across more than one product family. Treat these as project requirements, not as separate equipment categories.

01Special requirement

Explosion-Protected Lifting

Typical triggerClassified gas or dust zone, group and temperature classChanges permitted motors, brakes, enclosures, wiring, controls, documentation and acceptance evidence.Project reviewDefine this requirement
02Special requirement

Clean & Controlled Environment Handling

Typical triggerCleanliness class, particle limits, material and lubrication restrictionsChanges exposed surfaces, materials, lubrication, enclosure, cleaning access and contamination controls.Project reviewDefine this requirement
03Special requirement

Electrically Insulated Lifting

Typical triggerVoltage context, required insulation points and contact riskChanges the insulation architecture, monitoring, component separation and configuration-specific verification.Project reviewDefine this requirement
04Special requirement

High-Availability & Redundant Lifting

Typical triggerFailure consequence, required recovery time and maintenance accessChanges drive and brake architecture, fallback states, maintainability and proof of continued availability.Project reviewDefine this requirement
05Special requirement

High-Temperature & Molten-Material Handling

Typical triggerMolten or high-temperature load, radiant heat and personnel exposureChanges shielding, cabling, control position, emergency strategy and protection of critical components.Project reviewDefine this requirement
06Special requirement

Automation, Remote & Unmanned Operation

Typical triggerRemote or unmanned cycles, system hand-offs and fault recoveryChanges sensing, interlocks, permissions, recovery logic, interfaces and responsibility boundaries.Project reviewDefine this requirement

05 · Project brief

Bring the route,
not a perfect spec.

A layout, route sketch, load list, photos or process sequence is enough to begin. The first discussion identifies the operating boundaries, missing inputs and handling roles worth evaluating.

MAP YOUR HANDLING ROUTE
  1. Material & loadForm, dimensions, condition, attachment and stability
  2. Route & hand-offOrigins, destinations, waiting points, doors and crossings
  3. Process & timingSequence, buffer, cycle, peak flow and recovery
  4. Site & environmentStructure, floor, access, temperature, dust, hygiene or wind
  5. Control & scopeSignals, traffic, responsibility, verification and delivery boundary
