01 · SOLUTIONS / OPERATING CONTEXTS

The load is only
the start.

Material handling becomes a production issue when a load crosses a process boundary: receiving into storage, storage into a machine, a hall into a yard, or packing into dispatch. Start with the route. Define the lifting and transfer roles around it.

Map the context Start with your route
Steel coils staged beneath an overhead crane and coil-lifting attachment
Steel Mills & Metal Processing
Mobile harbour crane lifting a secured project cargo module from a vessel to a controlled quay landing zone
Ports & Marine Terminals
Automated pallet vehicle transferring sealed food cartons through a controlled cold-storage receiving airlock
Cold-Chain Storage & Distribution
Autonomous material-flow vehicles moving among storage and production stations
Warehousing, Distribution & Intralogistics
  1. 01
    Material & load state
  2. 02
    Process route & hand-off
  3. 03
    Access & environment
  4. 04
    Duty & recovery

02 · How to begin

Start with the operation.
Then define the handling roles.

The product name is not the starting point. The material, hand-offs, operating pressures and system boundary determine which equipment and engineering support belong in the discussion.

  1. 01Start with

    The real material.

    Define the load form, condition, attachment and any change between receiving and dispatch.

  2. 02Then map

    Every hand-off.

    Mark where the load waits, changes equipment, crosses traffic or enters another process zone.

  3. 03Then expose

    The operating pressure.

    Heat, cold, dust, wind, hygiene, timing, access and redundancy can change the handling concept.

  4. 04Then bound

    The system role.

    Separate equipment, structure, controls, interfaces, recovery and acceptance before defining supply scope.

02 · INDUSTRY ATLAS

Where does the flow
break down?

Each industry has its own material, timing, access and hand-off conditions. Select one to inspect the process moments that define the handling discussion.

Steel coils staged beneath an overhead crane and coil-lifting attachment01 · IndustrySteel Mills & Metal ProcessingReceiving, processing, inter-bay transfer and dispatch all change how coils, plate and long products should move.Overhead crane serving an automotive chassis assembly and tool-change area02 · IndustryAutomotive & Assembly ManufacturingTool readiness, line-side presentation, inter-zone hand-offs and maintenance access decide whether flow keeps pace.Shipyard fabrication halls, plate yards and large portal-crane routes03 · IndustryShipyards & Marine FabricationPlate fabrication, block assembly, hall-to-yard transfer and outfitting each create a different movement boundary.Mobile harbour crane lifting a secured project cargo module from a vessel to a controlled quay landing zone04 · IndustryPorts & Marine TerminalsVessel interface, quay transfer, yard storage and landside hand-off define whether each cargo stream can move safely and predictably.Multiple installed bridge cranes serving a machinery-production bay05 · IndustryMachinery Manufacturing & Service WorkshopsReceiving, machine service, precision assembly and repair routes make access and positioning as important as lift.Cleanroom overhead crane above stainless process equipment06 · IndustryFood & Beverage ProcessingMaterial condition, cleaning access, short maintenance windows and packed-product flow shape the work.Automated pallet vehicle transferring sealed food cartons through a controlled cold-storage receiving airlock07 · IndustryCold-Chain Storage & DistributionTemperature-controlled receiving, zone transfer, storage and dispatch must preserve product condition without exposing people or flow to avoidable delay.Autonomous material-flow vehicles moving among storage and production stations08 · IndustryWarehousing, Distribution & IntralogisticsInbound verification, replenishment, consolidation and dock hand-off determine whether inventory moves predictably.

03 · FOOD & BEVERAGE PROCESSING

KEEP THE FLOW MOVING WITHOUT CLOSING THE CLEANING OR SERVICE WINDOW.

The operating context changes at every hygiene or process boundary. The route must support production, cleaning access and packing flow together.

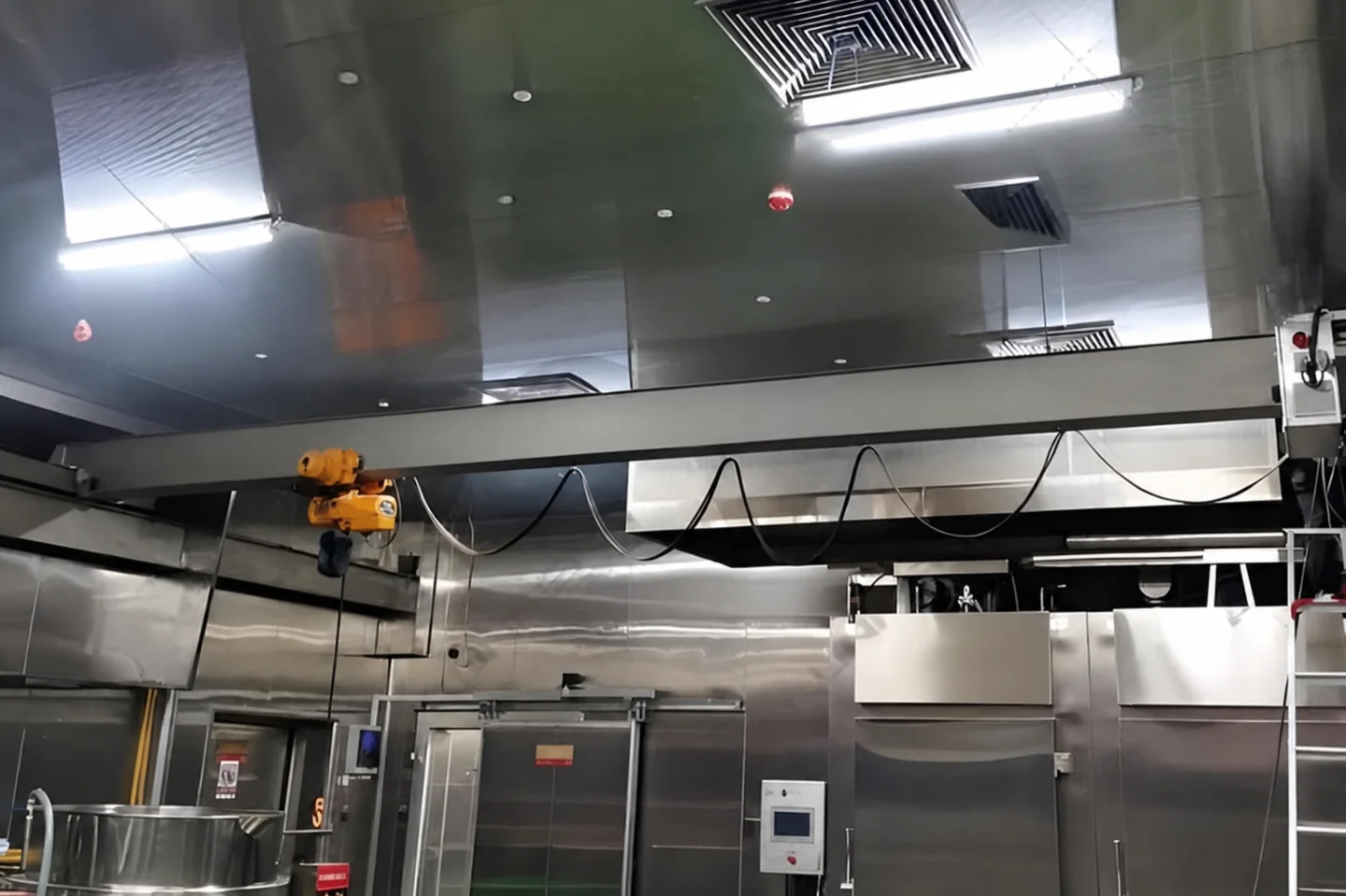

Cleanroom overhead crane above stainless process equipment and receiving access
RECEIVE → PROCESS-SIDE ACCESS → MAINTAIN → PACK & DISPATCHMaterial state and cleaning access shape the handling route as much as the load itself.

01 · Receive materials

KEEP INBOUND MATERIAL OUT OF THE PRODUCTION PATH.

Big bags, containers, ingredients, packaging and maintenance spares arrive at different frequencies and need defined storage before use. The handling plan should avoid repeated manual moves and preserve the separation between receiving, sanitation boundaries and process introduction.

Discuss receive materials
material
Ingredients / packaging / consumables
movement
Receiving → staging → process entry
constraint
Material condition & boundary control

Useful first inputs

  • Material form
  • Outer packaging
  • Receiving frequency
  • Sanitation boundary
  • Storage dwell time
  • Process hand-off

Possible system role

Receiving and staging coverage, a controlled transfer route and local lifting where material enters the process.

The operating context

WHY THIS INDUSTRY NEEDS ITS OWN HANDLING LOGIC.

Food and beverage handling crosses receiving, ingredient storage, process equipment and controlled packing zones. Loads may include big bags, vessels, change parts, pumps, motors, packaging and finished pallets. Each stage has a different relationship with sanitation, cleaning access and product exposure.

The handling concept should begin with those boundaries. Materials need a controlled introduction path; process-side lifting must not obstruct cleaning; maintenance work must fit short downtime windows; packed output must leave the line before it becomes a buffer that restricts production. Environmental finish and protection remain project-specific technical decisions.

  1. 01Pressure

    HYGIENE AND CLEANING ACCESS

    The system must preserve cleaning reach, drainage and the boundary between external packaging and process areas.

  2. 02Pressure

    SHORT MAINTENANCE WINDOWS

    Pumps, motors and change parts need a planned extraction and return route before the line stops.

  3. 03Pressure

    END-OF-LINE ACCUMULATION

    Packing output and controlled-zone transitions can constrain production when buffer and dispatch are disconnected.

The complete route

Four moments.
One material flow.

Use the route below as a first technical map. Each moment changes what needs to be measured, protected, timed or handed over.

Cleanroom overhead crane above stainless process equipment and receiving access

01 · RECEIVE MATERIALS

KEEP INBOUND MATERIAL OUT OF THE PRODUCTION PATH.

Big bags, containers, ingredients, packaging and maintenance spares arrive at different frequencies and need defined storage before use. The handling plan should avoid repeated manual moves and preserve the separation between receiving, sanitation boundaries and process introduction.

  • Ingredients / packaging / consumables
  • Material condition & boundary control

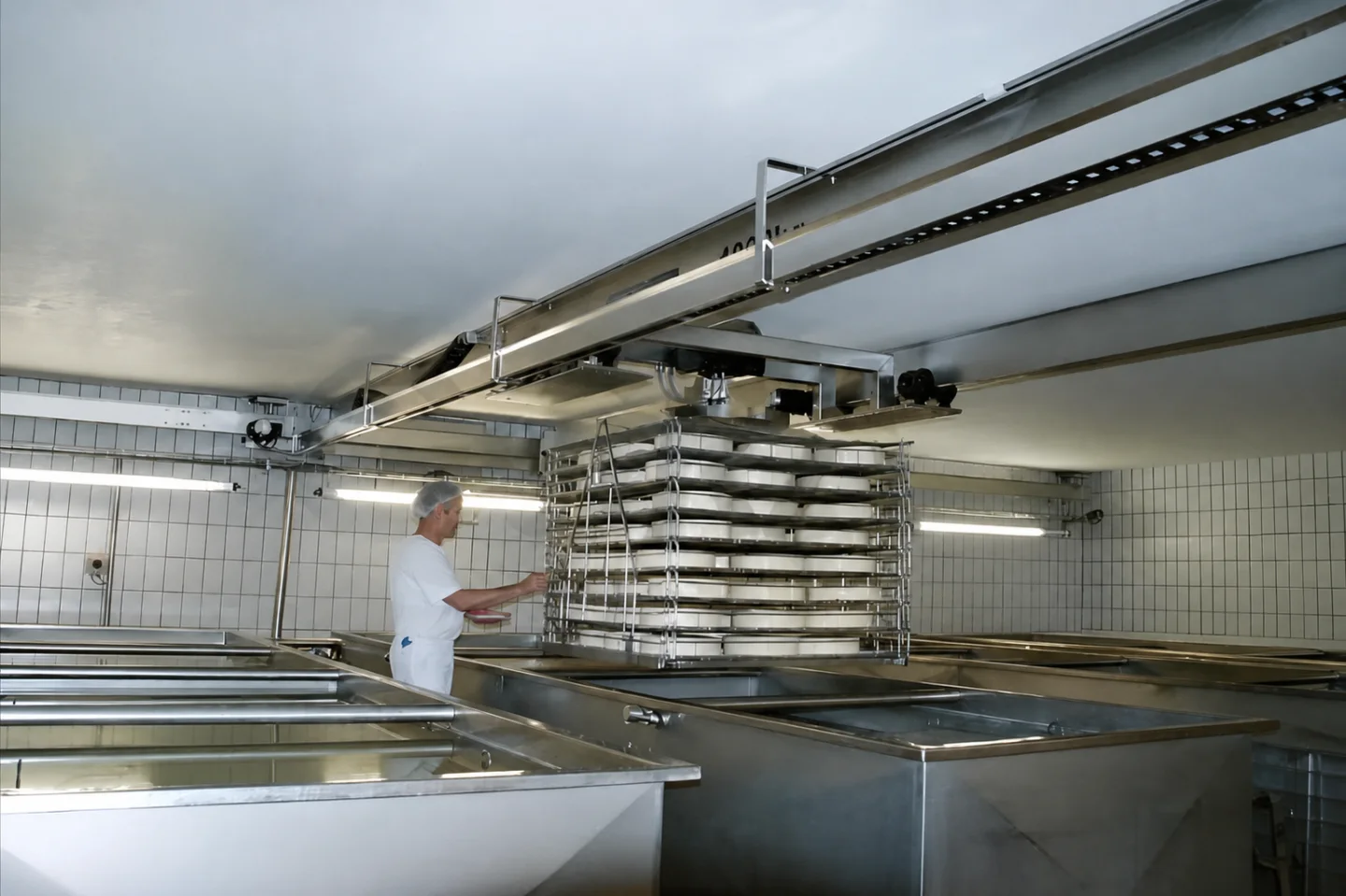

Double-girder cleanroom crane handling stacked trays above stainless process vats

02 · PROCESS-SIDE ACCESS

PRESENT MATERIAL AT THE PROCESS WITHOUT BLOCKING CLEANING ACCESS.

Ingredients, vessels, tools and change parts may need to reach a mixer, filler, cooker or packaging machine in a particular orientation. The concept must preserve operator space, cleaning access and controlled set-down positions while fitting the process sequence.

  • Vessels / ingredients / change parts
  • Cleaning access & controlled placement

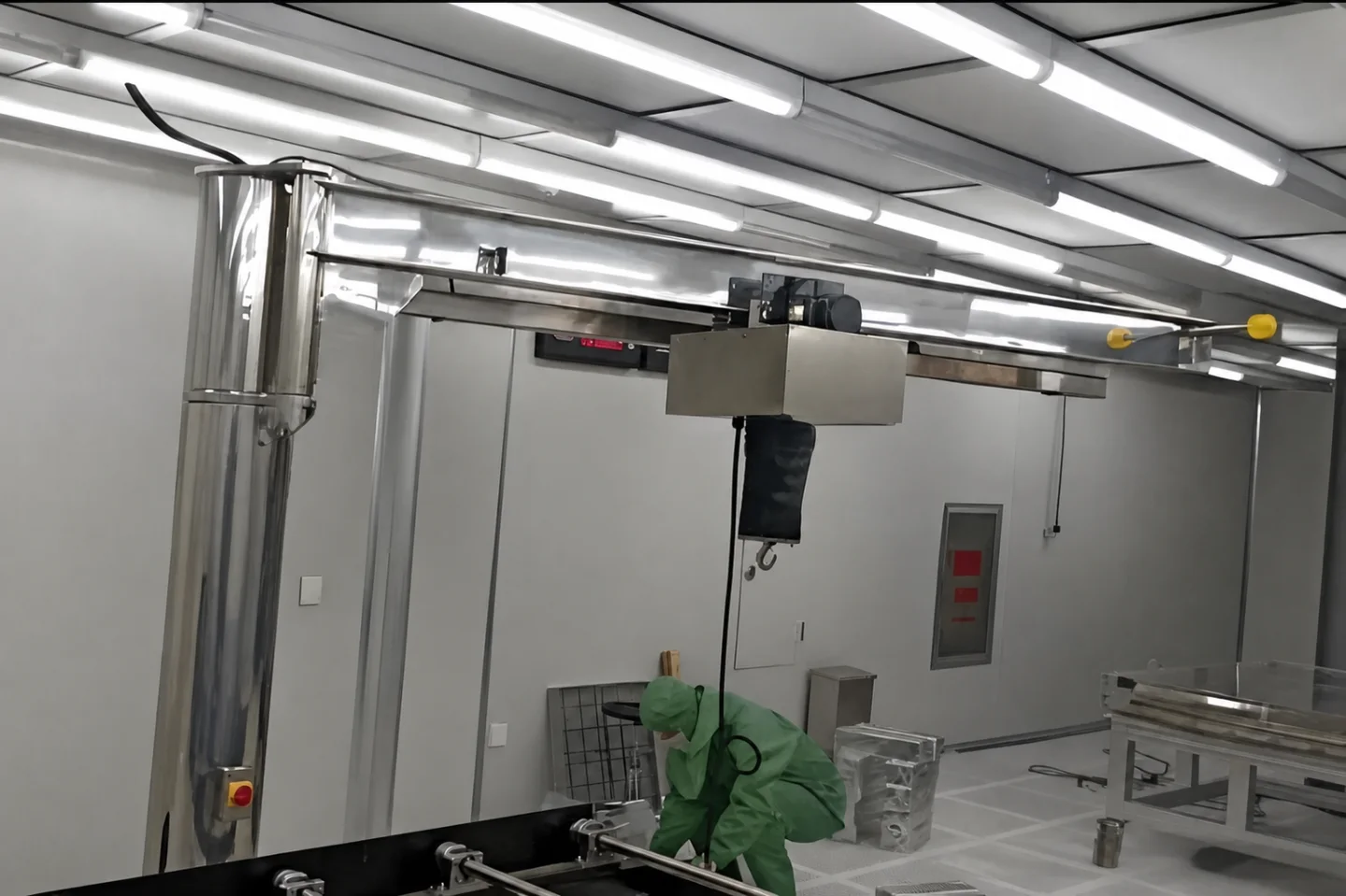

Cleanroom worker servicing equipment beneath a stainless jib crane and enclosed hoist

03 · MAINTAIN EQUIPMENT

USE THE DOWNTIME WINDOW, NOT THE PRODUCTION FLOOR, AS THE DESIGN LIMIT.

Pumps, motors, gearboxes, dies and change parts must often be removed and returned during limited downtime. The route needs a controlled maintenance sequence without blocking adjacent lines or leaving a suspended load in a cleaning and production area.

  • Pumps / motors / change parts
  • Short window & shared-line conflict
Intelligent AGV fleet carrying loads between packing and dispatch stations

04 · PACK & DISPATCH

CLEAR PACKED PRODUCT BEFORE IT CONSTRAINS OUTPUT.

Packed products, pallets or specialised containers must leave packing before accumulation restricts the line. The discussion connects output rhythm, buffer size, controlled zones, dock hand-off and separation between people and vehicle movement.

  • Packed product / pallets / containers
  • Output rhythm & dock hand-off

Decision framework

What changes
the concept?

  1. AInput

    ENVIRONMENTAL BOUNDARY

    Define where the load and equipment enter controlled, wet or product-adjacent areas.

  2. BInput

    CLEANABLE ACCESS

    Preserve space around vessels, pipework, machine covers and service points.

  3. CInput

    MAINTENANCE SEQUENCE

    Map isolation, extraction, temporary staging, repair and reinstatement inside the available window.

  4. DInput

    PACKING HAND-OFF

    Connect line rate, buffer, pallet or container format and the route into storage or dispatch.

04 · Special operating requirements

Choose the equipment.
Then add the operating constraint.

Explosion protection, cleanliness, electrical insulation, availability, heat and automation can change components, controls, verification and acceptance across more than one product family. Treat these as project requirements, not as separate equipment categories.

01Special requirement

Explosion-Protected Lifting

Typical triggerClassified gas or dust zone, group and temperature classChanges permitted motors, brakes, enclosures, wiring, controls, documentation and acceptance evidence.Project reviewDefine this requirement02Special requirement

Clean & Controlled Environment Handling

Typical triggerCleanliness class, particle limits, material and lubrication restrictionsChanges exposed surfaces, materials, lubrication, enclosure, cleaning access and contamination controls.Project reviewDefine this requirement03Special requirement

Electrically Insulated Lifting

Typical triggerVoltage context, required insulation points and contact riskChanges the insulation architecture, monitoring, component separation and configuration-specific verification.Project reviewDefine this requirement04Special requirement

High-Availability & Redundant Lifting

Typical triggerFailure consequence, required recovery time and maintenance accessChanges drive and brake architecture, fallback states, maintainability and proof of continued availability.Project reviewDefine this requirement05Special requirement

High-Temperature & Molten-Material Handling

Typical triggerMolten or high-temperature load, radiant heat and personnel exposureChanges shielding, cabling, control position, emergency strategy and protection of critical components.Project reviewDefine this requirement06Special requirement

Automation, Remote & Unmanned Operation

Typical triggerRemote or unmanned cycles, system hand-offs and fault recoveryChanges sensing, interlocks, permissions, recovery logic, interfaces and responsibility boundaries.Project reviewDefine this requirement

05 · Project brief

Bring the route,
not a perfect spec.

A layout, route sketch, load list, photos or process sequence is enough to begin. The first discussion identifies the operating boundaries, missing inputs and handling roles worth evaluating.

MAP YOUR HANDLING ROUTE
  1. Material & loadForm, dimensions, condition, attachment and stability
  2. Route & hand-offOrigins, destinations, waiting points, doors and crossings
  3. Process & timingSequence, buffer, cycle, peak flow and recovery
  4. Site & environmentStructure, floor, access, temperature, dust, hygiene or wind
  5. Control & scopeSignals, traffic, responsibility, verification and delivery boundary
